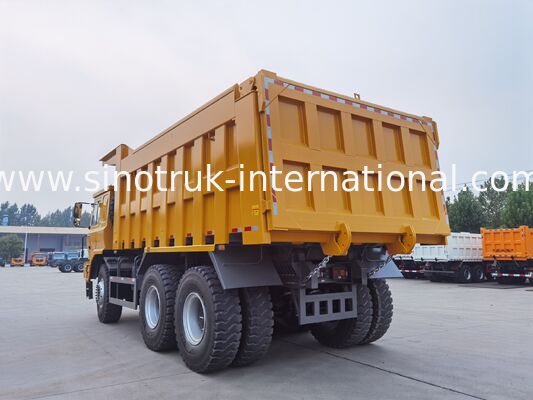

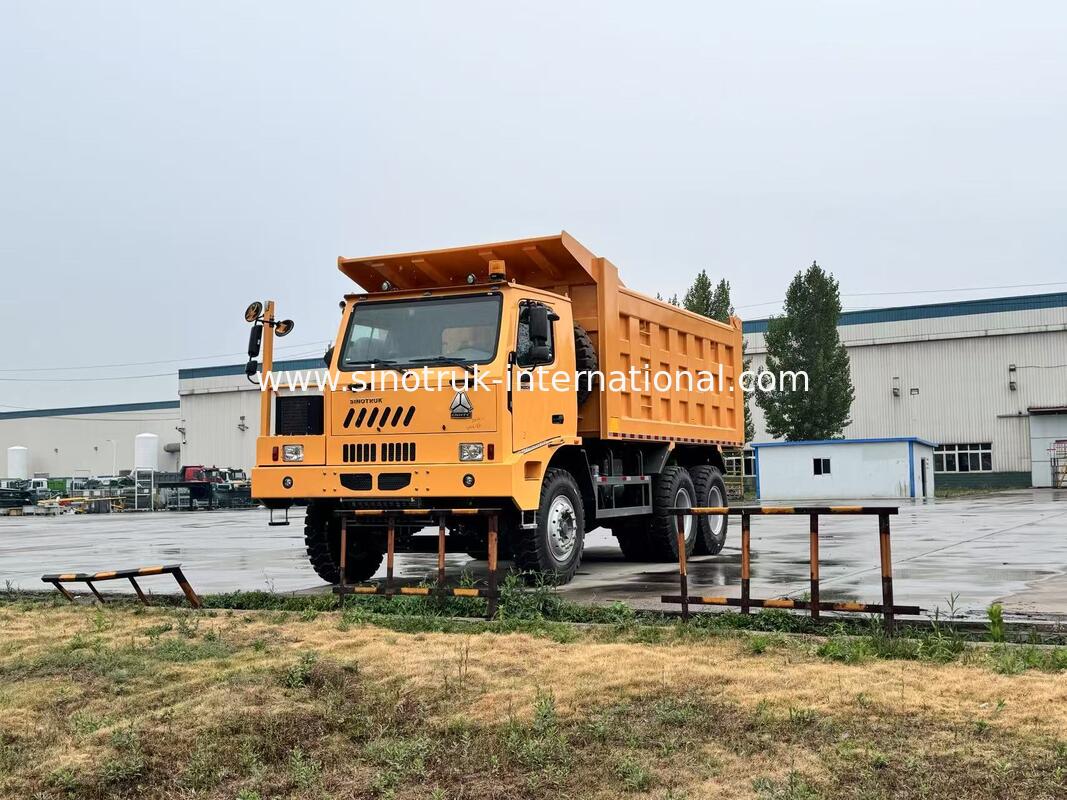

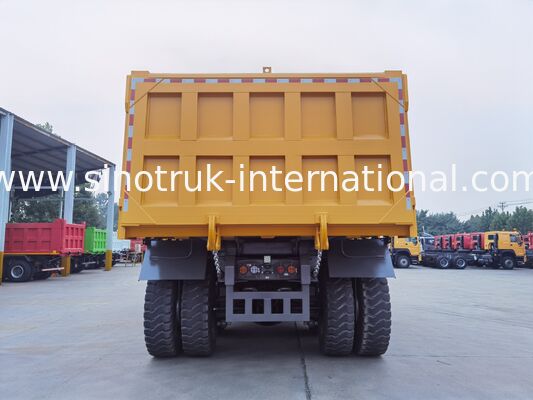

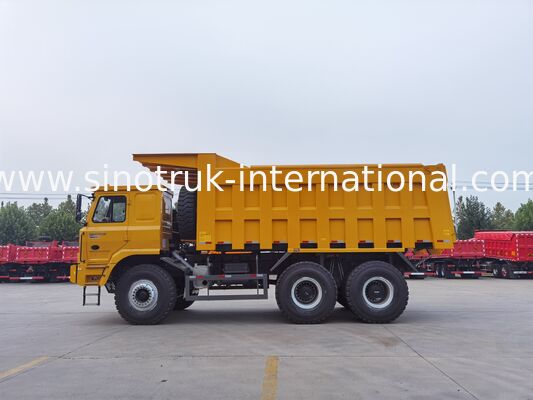

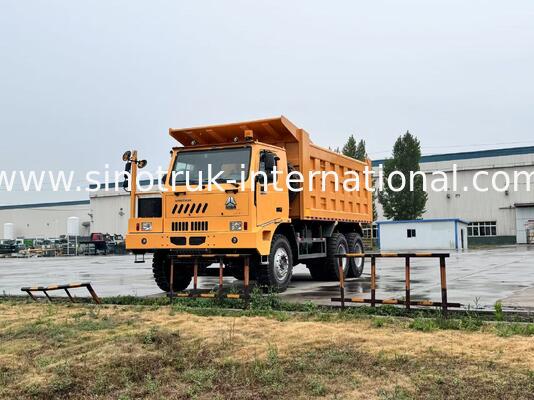

6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry

6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry

  • 6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry
  • 6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry
  • 6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry
  • 6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry
6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry
商品の詳細:
起源の場所: 中国
ブランド名: SINOTRUK Yellow River
証明: ISO/3C/BV/IFA/SGS
モデル番号: ZZ590HV384KB3B
お支払配送条件:
最小注文数量: 1台
価格: 交渉可能
パッケージの詳細: ロロまたはバルク船でのヌードまたはワックス
受渡し時間: 前払いから25営業日
支払条件: T/T、L/C、ウェスタンユニオン
供給の能力: 1か月あたり3,000ユニット
連絡先
詳細製品概要
製品名: トンパーダンプトラック モデル: ZZ590HV384KB3B
ドライブの種類: LHD 6X4 操舵: ZF8118
エンジン: WP12.430E201、430HP 排出基準: ユーロ2
ハイライト: 6X4 LHD ダンプカー ダンプ トラック、鉱山ダンプカー ダンプ トラック、371HP ダンプカー ダンプ トラック
ハイライト:

6x4 mining tipper 90 ton

,

430HP mining dump truck

,

heavy duty tipper lHD

Description:

SINOTRUK features a self-developed new front axle assembly, adopting an integral cast steering beam and 500×210 reinforced brake to optimize truck component assembly technology.
The rear axle is equipped with a 35-ton mining drive axle with a more rationally designed main reducer structure, reinforced cast axle housing and drum brakes. The vehicle’s load-bearing capacity and braking performance rank at the leading level among domestic counterparts.
It is fitted with a HW21712 gearbox and HW70 power take-off, delivering a maximum torque of 700NM.
The truck is equipped with a 500-liter D-type fuel tank (400-liter fuel tank optional) to fully meet diverse vehicle operation and workload requirements.
Wheel & tire configuration: 10.0/2-25 wheel assembly, fitted with standard 14.00-25-36PR tires and optional original 14.00R25-36PR tires. These are custom high-load and high-wear-resistant special tires exclusively designed for heavy-duty mining scenarios.
The HOWO Mining Dump Truck adopts a unilateral high-strength skeleton cab with a simple and rugged exterior design and broad driving vision. Its superior sealing performance ensures a consistently safe and comfortable driving environment. Two lighting lamps are respectively installed at the front and rear top of the cab to support stable night operation.



Specification:



Sinotruk Howo 6×4 Mining Tipper 90Ton 430HP LHD
Model ZZ5907V414L
Drive Type 6×4
Engine
WP12.430E201,430 HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW21712(12 forwards & 2 reverses)
Front Axle VGK20,20T
Driving Axle MCK45ZG,2X45T
Steering ZF8118 hydraulic steering with power assistance.
Speed ratio 10.47
Rim/ Tire 14.00-25,14.00R25,Radial tire
Wheel base 3800+1500(mm)
Overall dimension 8700×3300×4100(mm)
Cargo body 5800×3200×1800(mm),Bottom:16mm, Side:12mm
The curb weight 29400(Kg)
Oil tank 500L
Max. speed 40km/h
Color White, red, green, golden and so on.



Applications:

HOWO 90-ton Mining Dump Truck is a custom model researched and developed by our dedicated heavy engineering technical team. Focused on short-distance transport operations under extremely tough site conditions, this dump truck fits a wide range of application scenarios such as open-pit coal mines, steel factories, hydropower engineering projects and docks with rugged, inferior road conditions. Built to target professional mining user groups, it can create prominent economic returns and comprehensive social benefits for every operator.



Competitive Advantage:

1.Competitive pricing with outstanding cost performance

2. Low fuel consumption to reduce operating costs

3. Powerful heavy-duty engine with sufficient power output

4. Complete range of truck models to meet all your demands

5. Supported by strong technical strength and top-tier technology, our trucks feature premium quality and great reliability

6. Core key components adopt world-class premium parts

7. Custom cargo bodies can be tailor-made as you require, with light tare weight, high rigidity and large load capacity

8. Built with high-strength steel for long service life, safe operation and high transport efficiency

9. Short delivery lead time; we arrange customized production quickly per your requirements

10. Professional import & export procedures for highly efficient customs clearance
