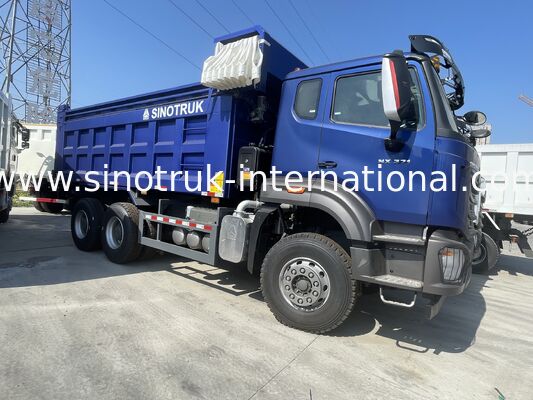

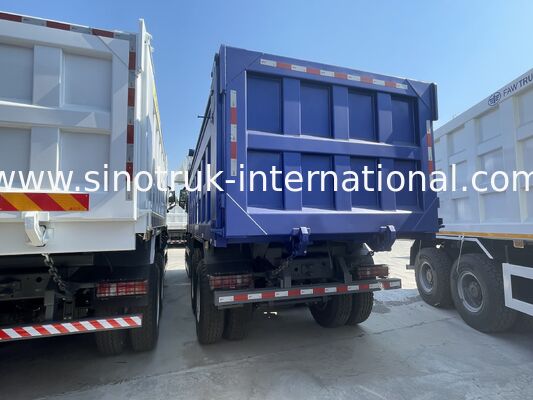

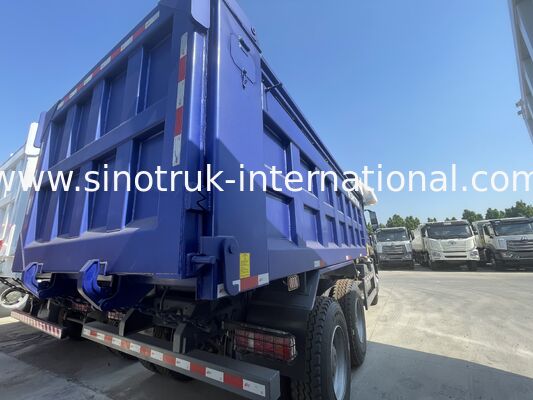

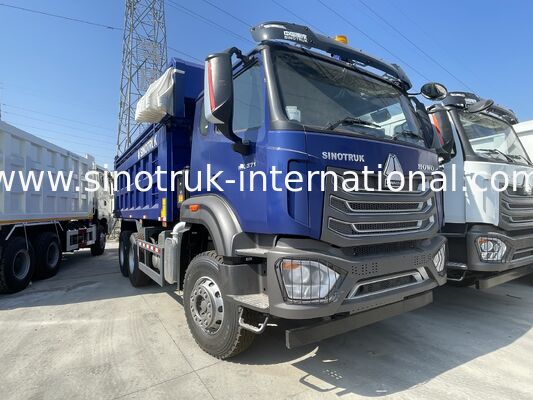

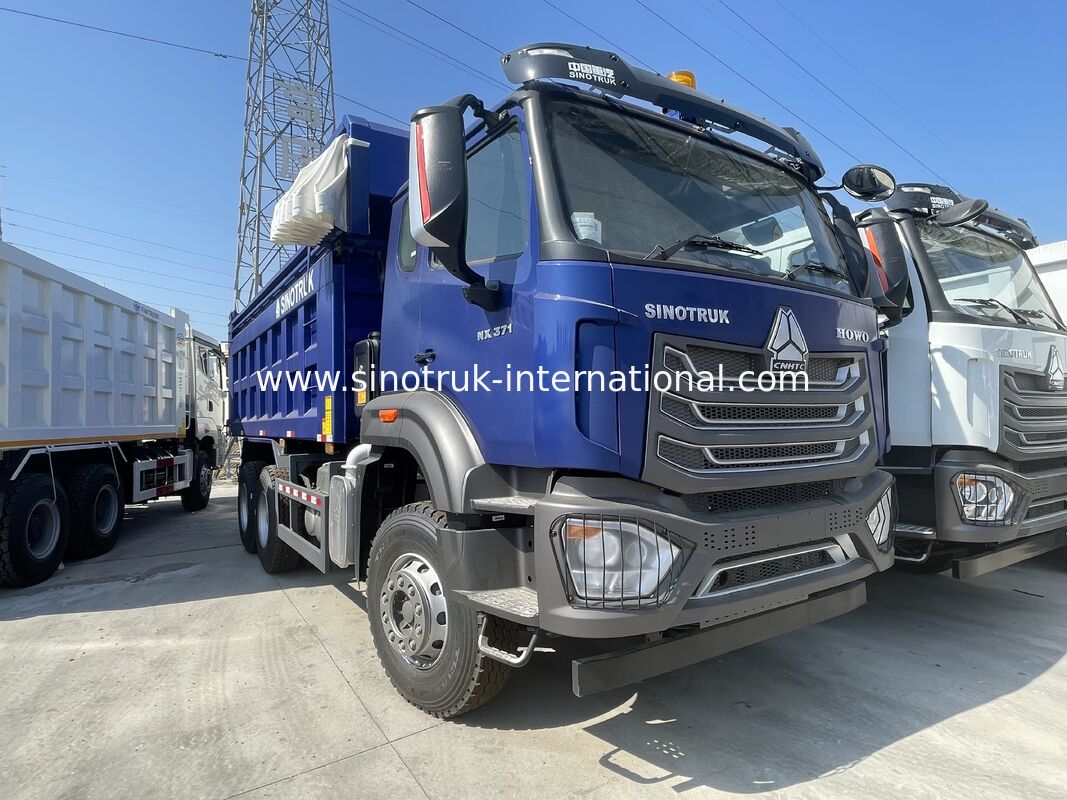

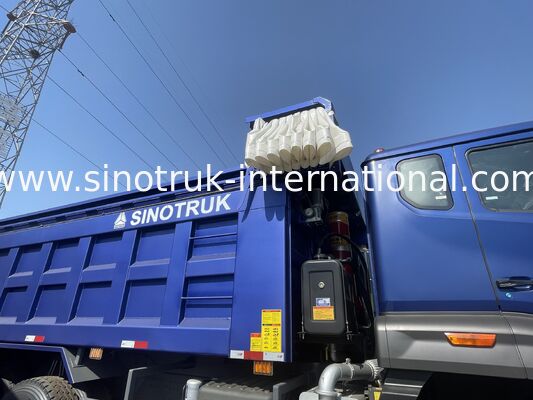

SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin

SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin

  • SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin
  • SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin
  • SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin
  • SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin
  • SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin
SINOTRUK HOWO NX Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin
商品の詳細:
起源の場所: 中国
ブランド名: SINOTRUK HOWO N7
証明: ISO/3C/BV/IFA/SGS
モデル番号: ZZ3257V384JB1
お支払配送条件:
最小注文数量: 1台
価格: USD38000-USD42000/UNIT)negotiation
パッケージの詳細: ロロまたはバルク船でのヌードまたはワックス
受渡し時間: 前払いから25営業日
支払条件: L/C、T/T、ウェスタンユニオン
供給の能力: 1か月あたり3,000ユニット
連絡先
詳細製品概要
モデル: ZZ3257V384JB1 ドライブの種類: 6x4
エンジン: WP12.400E201,400 HP (ヨーロッパのII) 操舵: 力の援助のZF8118油圧ステアリング
ハイライト:

SINOTRUK HOWO NX dump truck 6X4

,

LHD tipper dump truck with tarpaulin

,

dump truck warning light with warranty

SINOTRUK HOWO Nx Cab Tipper Dump Truck LHD 6X4 A Warning Light With A Tarpaulin


Description:


Tipper Truck SINOTRUK HOWO N7 Front Lifting 30 - 40tons LHD 6X4 for Construction

This type product , with features of reliable structure , high loading capacity which can

load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide

acceplication.


The machine can meet the construction site, underground and other harsh environment requirements

Mining area. Which one will satisfy your rock mining and short haulage

Soil and engineering construction.

The HOW-N7 cab was jointly developed by Sinotruk and Giugiaro Design of Italy

The company. European style, bold and bold appearance, with

Smooth lines and the same quality of painting process as top cars, create a noble

And beautiful style; The large windshield brings a wider view, with electric

The rear view mirror is beautiful and practical

And convenient; Electric lifting system reduces labor intensity, easy to operate

Maintenance; The cab body and doors not only inherit from the HOWO 7 Series, but also conform

In line with Swedish regulations, but also reference to Sweden's improvement results

The truck. The technology is designed to remove the steering column in the event of an impact

Deformation and absorption make the HOWO N7 heavy duty truck safe for performance

Reach the world-class level; The interior of the cab reflects that

Humanized design concept, comfortable and convenient.


Specifications:



SINOTRUK HOWO N7 Cab Tipper Dump Truck LHD 6X4 400HP Diamond silver
Model ZZ3257V384JB1
Drive Type 6×4
Engine

WP12.400E201,400 HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 9.726L
Cabin  N7 cab(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×HF9 ( 9 Tons)
Driving Axle HC16, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8575×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12300(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:


working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.


Competitive Advantage:


1) Various types of trucks can meet your requirements
2) The world's top technology products are used for key components
3) Sinotruk manual transmission is selected for transmission. No frustration in daily driving. Thanks to Sinotruk Haohan's superb training skills, the engine and gearbox cooperate with each other.

4) More active accelerator response, do not need to step on the accelerator can also feel the power feedback, let car users feel the essence of fun control.

5) In terms of comfort, Haohan N7W has made great efforts to create riding comfort, and the driving space is satisfactory and comfortable enough.

6) The optimized sealing structure has better sealing effect.

7) Intelligent hydraulic control system, avoid misoperation, higher safety and operation efficiency.

8) A variety of box structure and equipment selection

Low fuel consumption, it performs very well for such a large truck
10) The engine is strong enough

11) Competitive price, cost-effective
12) Fast and efficient supply of spare parts to bring you more convenience
13) Fast delivery time, we can accurately and quickly arrange production according to your needs

14) Professional import and export transaction process to make customs clearance more efficient
