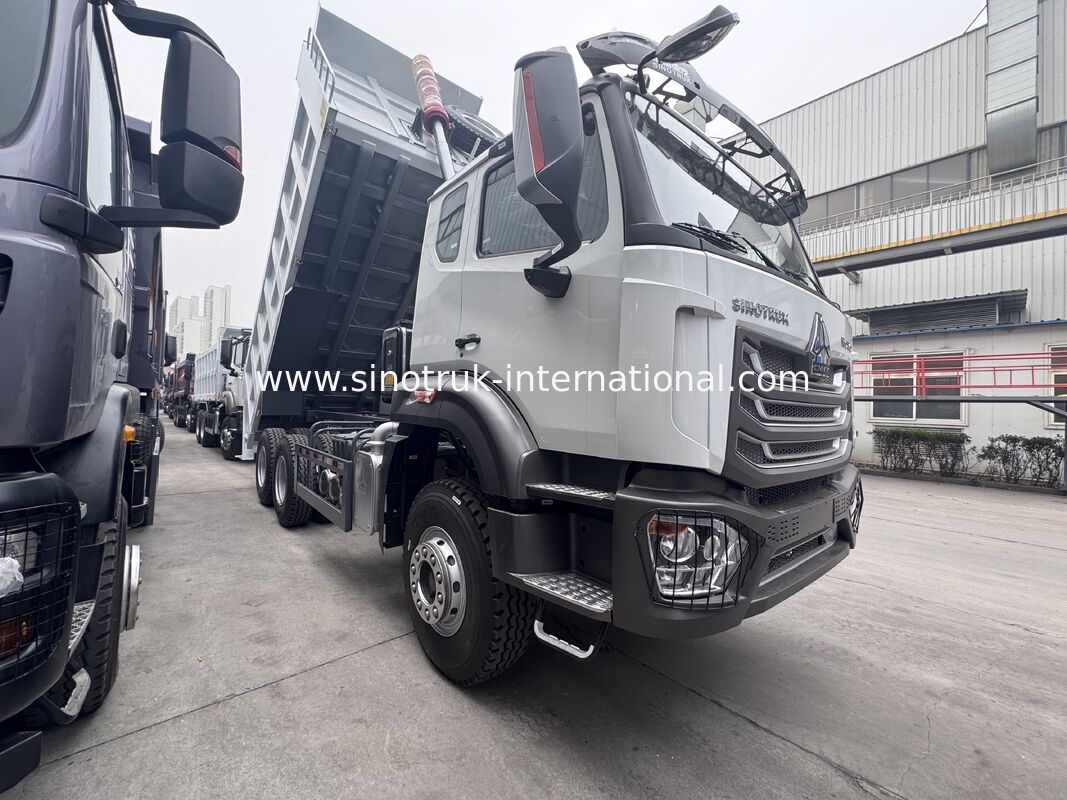

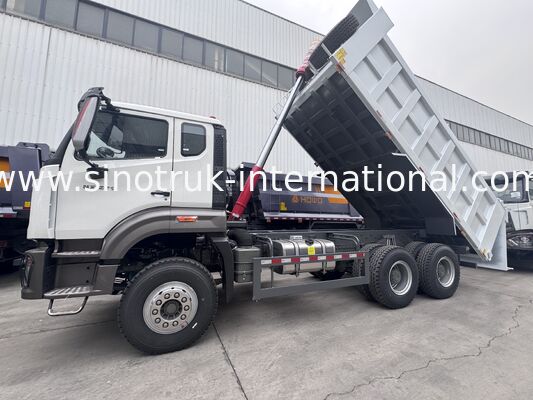

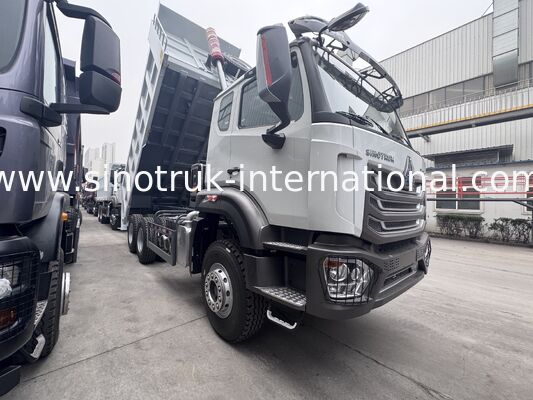

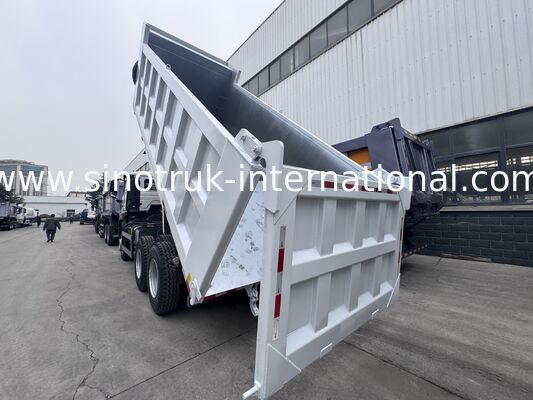

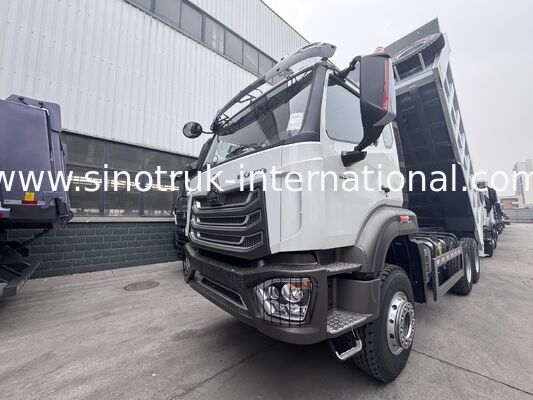

SINOTRUK HOHAN New Howo Tipper Dump Truck 19-20CBM Customer-customized Front Lifting 6 × 4 LHD Cargo Box

SINOTRUK HOHAN New Howo Tipper Dump Truck 19-20CBM Customer-customized Front Lifting 6 × 4 LHD Cargo Box

商品の詳細:
起源の場所: 中国
ブランド名: SINOTRUK
証明: ISO/3C/BV/IFA/SGS
モデル番号: ZZ3257V384JB1
お支払配送条件:
最小注文数量: 1台
価格: 交渉可能
パッケージの詳細: バルク船、ロロ船、コンテナでワックスをかけます
受渡し時間: 10-30営業日
供給の能力: 3月1000台
連絡先
詳細製品概要
モデル: ZZ3257V384JB1 エンジン: WD615だ47371HP (ユーロII)
ドライブの種類: 6×4 操舵: B****
キャビン: H77L 新型前面 (寝台,エアコン,新型シート) 色: (任意)
ハイライト:

SINOTRUK HOHAN Howo tipper truck

,

customized front lifting dump truck

,

6×4 LHD tipper cargo box

SINOTRUK HOHAN New Howo Tipper Dump Truck 19-20CBM Customer-customized  Front Lifting  6 × 4 LHD  Cargo Box


Description:

This 6x4 Sinotruk HOWO Dump Truck is a reliable and powerful vehicle, designed for heavy-duty transport tasks, and can easily carry bulky materials such as sand, stones, construction waste, etc. In addition, this Howo dump truck has advanced technology, durable box structure, and efficient fuel consumption, making it the first choice for mining, construction, and logistics industries.


This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.




Specifications:



SINOTRUK HOHAN New Howo Tipper Dump Truck  Middle Lifting  6 × 4 RHD  Cargo Box  19-20CBM Customer-customized color Diamond Silver
Model ZZ3257V384JB1
Drive Type 6×4
Engine
WD615.47.371HP ( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin H77L New front face(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 1×VGD95 ( 9.5 Tons)
Driving Axle 2XMCP16ZG, 16Tons
Steering B****
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 12.00R20 Radial tire
Wheel base 3825+1350(mm)
Overall dimension 8545×2600×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12250(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:


working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.


Competitive Advantage:


1) with all kinds of truck model, which can fulfil your requirement
2) the key parts adopt the world's top technology products
3) based on strong technical support and top level technology make the trucks with high quality and more reliable

4) Optimized cargo body structure,light weight,high rigidity,large loading capacity

5) Using the high strength steel,it has long service life

6) Optimized the sealing structure has the better sealing effect.

7) The intelligent hydraulic control system helps to avoid error operation, it has higher safety and running efficiency.

8) Multiple box structures and device selections

9) low fuel consumption
10) strong enough engine

11) competive price, cost-effective
12) quick and efficient spare parts supply bring you more convenient
13) fast delivery time, we can arange production according to your needs exactly and quickly

14) professional import and export dealing precedure, make customs clearance more high efficiency
