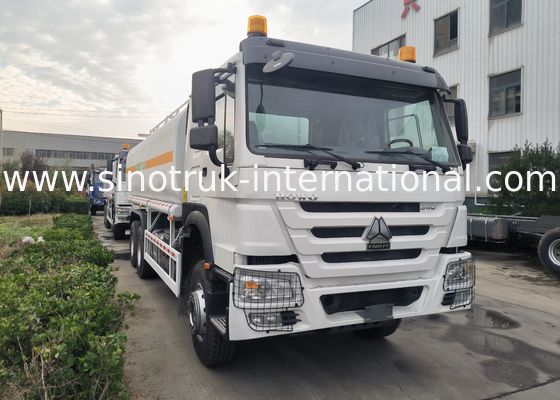

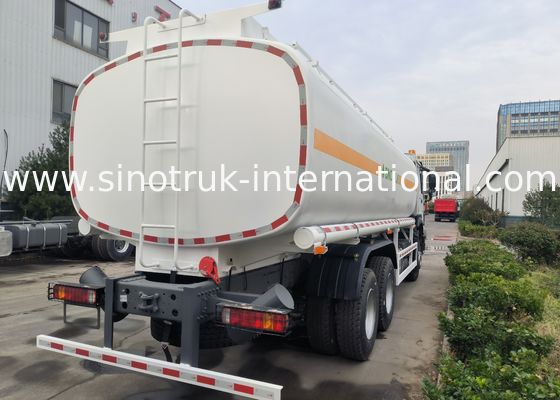

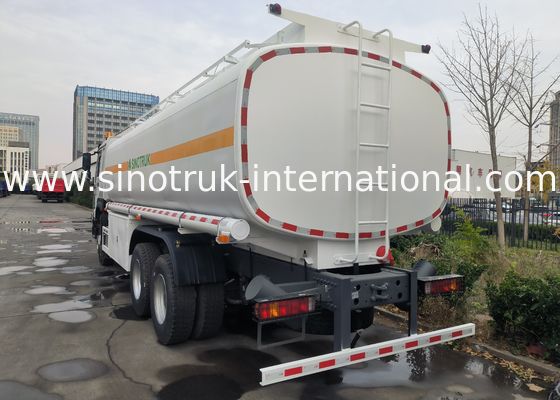

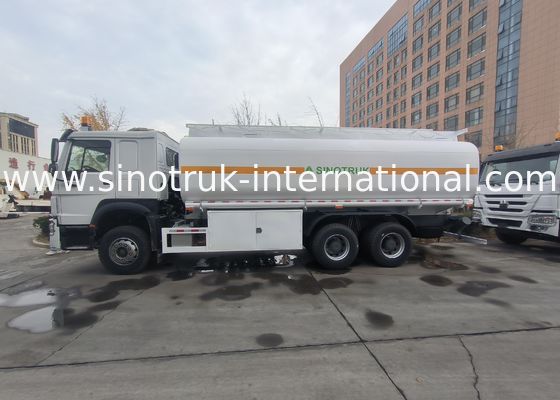

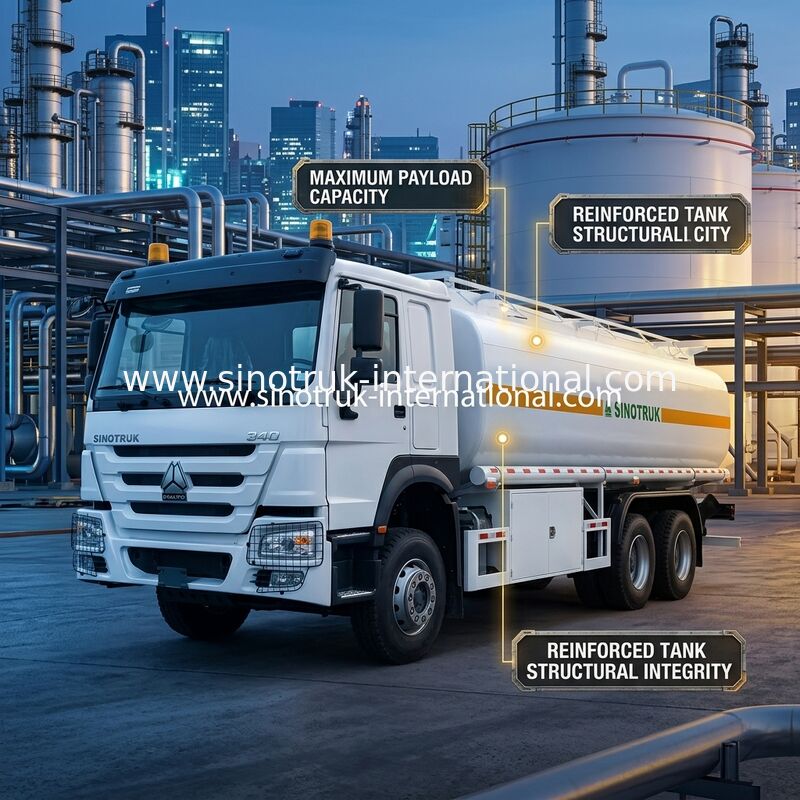

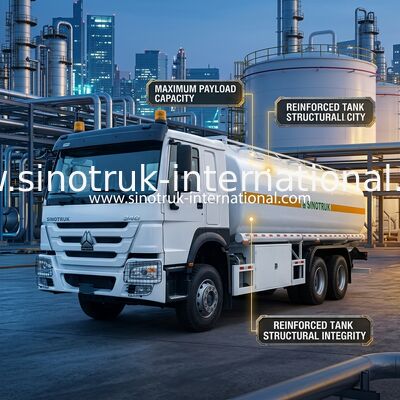

Sinotruk Howo 20CBM Fuel Tank Truck 10Wheels 340Hp 6 × 4 Multiple Compartments
Description:
Oil tanker truck (also called fuel dispensing truck,oil transfer truck,diesel truck,petrol fuel tanker,crude oil tankertruck,refuel tanker truck,diesel fuel tanker,oil tanker) is used to transport oil,diesel,gasoline,kerosene,etc.It can be divided into many compartments to transport different types of fuels,ubricant,crude oil,alcohol. Oil pump
equipped,with pump in pump out function.
.
Our Oil Tank Truck adopts advanced butt welding technology, the high pressure gas after the forming of the tank test leak detection, the tank has high strength, stable center of gravity, vehicle safety and stable; tank welding after shot blasting pretreatment process, rust, paint adopts advanced baking technology, durable and beautiful appearance.
Specification:
| Sinotruk Howo 20CBM Fuel Tank Truck 10Wheels 340Hp 6 × 4 Multiple Compartments | |
| Chassis Model | ZZ1257N4647B1 |
| Drive Type | 6×4 |
| Engine | WP10.340E22,340 HP( Euro II) |
| Cabin | HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
| Transmission | HW19710(10 forwards & 2 reverses) |
| Front Axle | (1X9.5 Tons) |
| Driving Axle | (2X16 Tons) |
| Clutch | hydraulically operating with air assistance |
| Rim/ Tire | 12.00R20, Radial tyre |
| Wheel base | 4600(mm) |
| Capacity of tank body | 20CBM |
| Thickness of tank body | 5mm, |
| Basic setup | Gear oil pump, flow meter, flash hider, fire extinguisher |
| Overall dimension | 10550×2600×3250mm |
| The curb weight | 11940(Kg) |
| Gross weight | 25000 kg |
| Max. speed | 95km/h |
| Color | White, red, green, golden and so on. |
Applications:
The Oil tank truck is mainly used for oil derivatives (gasoline, diesel oil, lubricating oil and coal tar oil) transportation and storage.
Competitive Advantage:
1) Our Oil tank truck with advanced butt welding technology, after the forming of the tank high pressure gas leak detection, the tank has a high intensity, stable center of gravity,safe and stable vehicle characteristics;
2) Shot blasting pre treatment process after welding tank, rust, paint adopts the advanced baking technology, durable and beautiful appearance. Independent sub positions,
3) Divided into different oil products, chemicals, food, as liquid food truck, chemical liquid truck,insulation liquid vehicles, dangerous goods transport vehicles, the asphalt transportation vehicle
4) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance
5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants
6) with all kinds of truck model, which can fulfill your requirement
7) the key parts adopt the world's top technology products
8) based on strong technical support and top level technology make the trucks with high quality and more reliable
9) competitive price, cost-effective
![]()
![]()
