| 起源の場所: | 中国 |
| ブランド名: | SINOTRUK |
| 証明: | ISO/3C/BV/IFA/SGS |
| モデル番号: | ZZ1257N5847E1 |
| 最小注文数量: | 1台 |
|---|---|
| 価格: | USD56000-USD57000/UNIT)negotiation |
| パッケージの詳細: | ロロまたはバルク船でのヌードまたはワックス |
| 受渡し時間: | 前払いから25営業日 |
| 支払条件: | L/C、T/T、ウェスタンユニオン |
| 供給の能力: | 1ヶ月あたりの2,000units |
| 製品名: | トラックマウントクレーン | モデル: | ZZ1257N5847E1 |
|---|---|---|---|
| ドライブタイプ: | LHD 6X4 | 排出基準: | ユーロ2 |
| エンジン: | WP12.400E201,400HP (ユーロII) | 持ち上げる容量: | 12トン |
| ハイライト: | SINOTRUK truck mounted crane 12 tons,XCMG knuckle boom crane 6X4,Military bumper truck crane lifting |
||

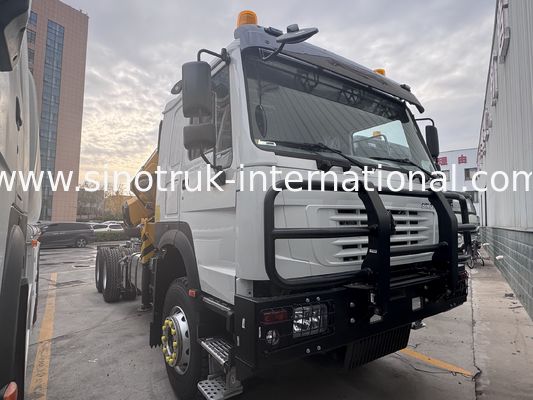

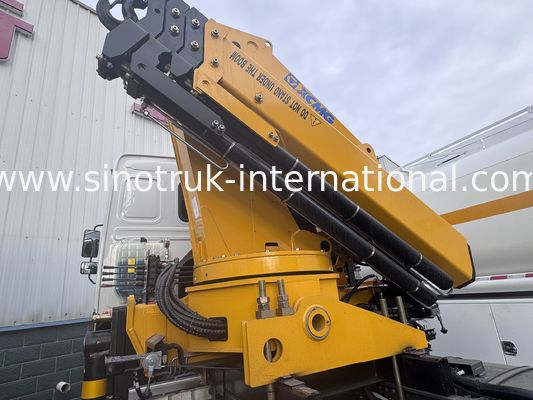

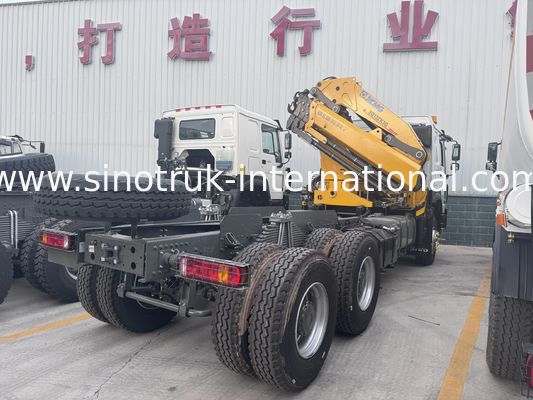

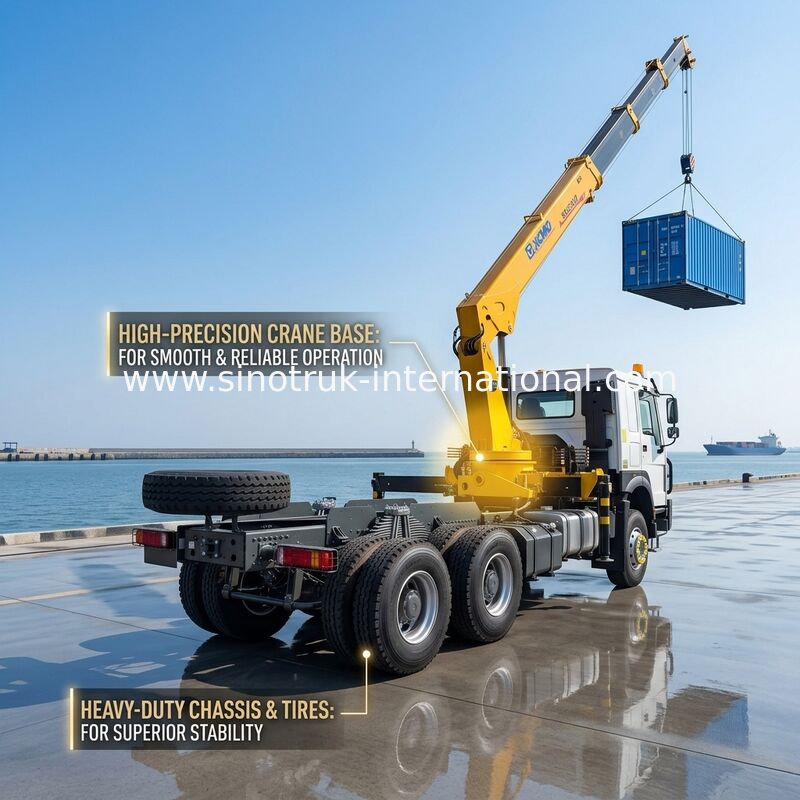

SINOTRUK Truck Mounted Cranes Equipment 12 Tons XCMG For Lifting 6X4 Knuckle Boom Crane Yellow, eye-catching, Military bumpers
Description:
Truck Mounted Crane 12 Tons XCMG for Lifting and goods transportation 6X4 400HP
Truck Mounted Crane can lift and transport all kinds of goods, widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical engineering etc.), landscape sanitation, electricity and telecommunication industry, field operation, pipeline transportation, stone industry, dock cargo handing and long distance goods transfer. After installed additional device, it can be used for traffic accidents
and high altitude rescue.
Which can choose all kinds of Brand, Such as HOWO, Golden Prince, HOWO A7, Hohan, Engine
power have 266HP, 290HP, 336HP, 371HP and so on. Emission stand from Euro 2 to Euro5.
Specification:
| Truck Mounted Crane 12Tons XCMG for Lifting and goods transportation 6X4 | |
|
Chassis Model |
ZZ1257N5847E1 |
|
Drive Type |
6×4 |
|
Engine |
WP12.400E201,400HP( Euro II) |
|
Cabin |
HW76 lengthened cab(with one sleeper, air-conditioner and two new-style seat) |
|
Transmission |
HW15710(10 forwards & 1 reverses) |
|
Front Axle |
HF9(1X9 Tons) |
|
Driving Axle |
HC16(2X16Tons) |
|
Clutch |
hydraulically operating with air assistance |
|
Rim/ Tire |
11.00R20 |
|
Wheel base |
5825+1350(mm) |
|
Lifting Capacity |
12 Tons(XCMG, HIAB, or other famouse brand) |
|
Dimension of cargo body |
6200*2300*600mm, Bottom:3mm Side:1.5mm |
|
Lifting Height |
14.5m |
|
Overall dimension |
11700×2500×3475mm |
|
The curb weight |
10180(Kg) |
|
Gross weight |
25000 kg |
|
Max. speed |
95km/h |
|
Color |
White, red, green, golden and so on. |
Applications:
Truck Mounted crane can widespread use in transportation, civil construction (including constructional engineering, road and bridge engineering, municipal constructional engineering, mechanical
engineering etc.), landscape sanitation, electricity and telecommunication industry.
Competitive Advantage:
1) Adopt imported hydraulic pumps, valves and other hydraulic components to lock micro-products to ensure safety and durability
2) The product is welded with high-strength steel plate, which increases the structural strength, reduces the weight of the engine, and greatly improves the lifting performance
3) Hexagonal curved forming arm, reducing horizontal shaking, making the operation safer; The rotating device uses high-quality rotating bracket and reducer to make the movement more flexible and smooth.
4) The tank body external sandblasting treatment, internal anti-corrosion treatment, the outer surface of the advanced polyurethane paint, beautiful appearance
5) Front and rear high spray optional, water jet diffusion function, 360 degrees rotation; Tilt 150 degrees up and down. Optional small flow pump, spray drum wake up garden trees insecticidal flowers and plants
6) A variety of models to meet your requirements
7) The world's top technology products are used for key components
8) Based on strong technical support and first-class technology, we can make high-quality and high-quality trucks more reliable
9) The price is competitive and cost-effective
10) Fast and efficient spare parts supply to bring you more convenience
11) Fast delivery time, we can accurately and quickly arrange production according to your needs
12) Professional import and export trading procedures make customs clearance more efficient
![]()
![]()
![]()
