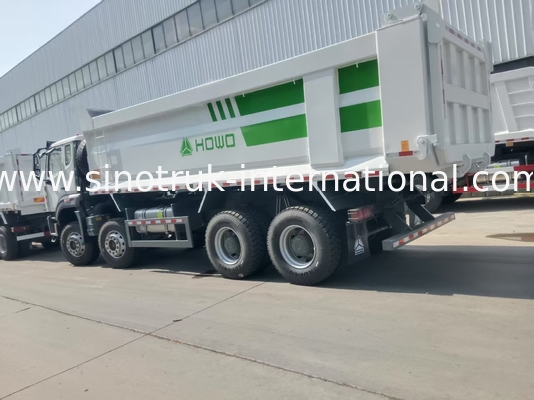

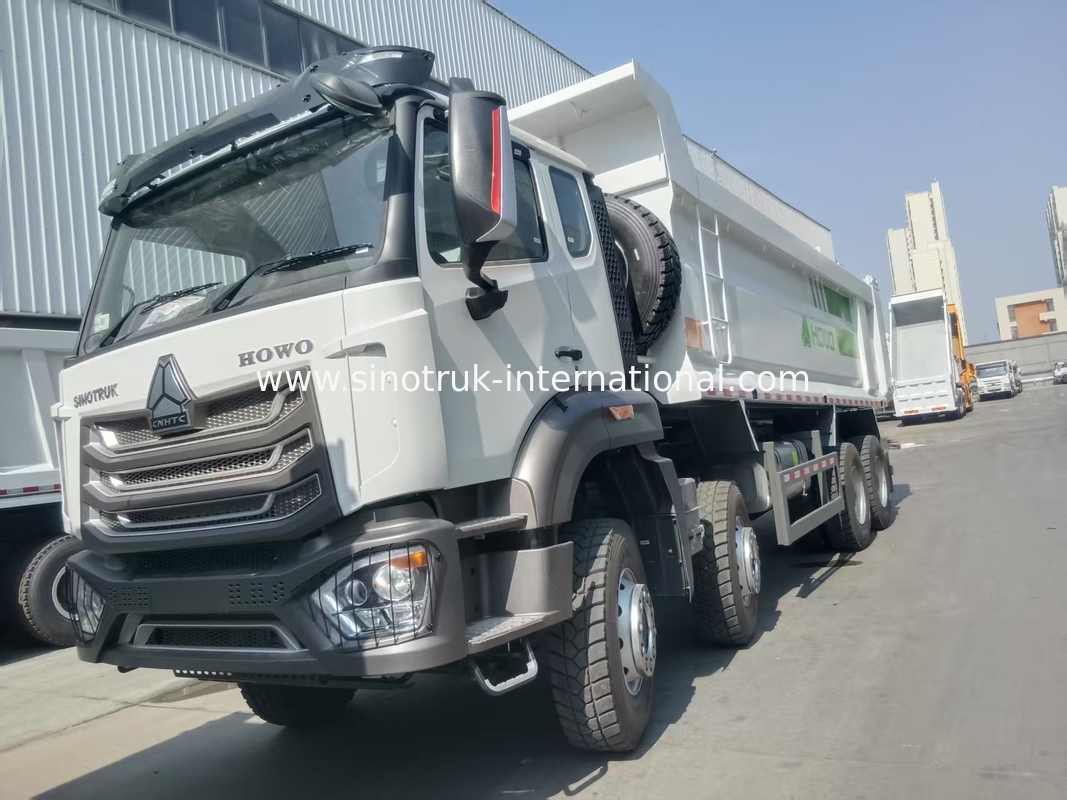

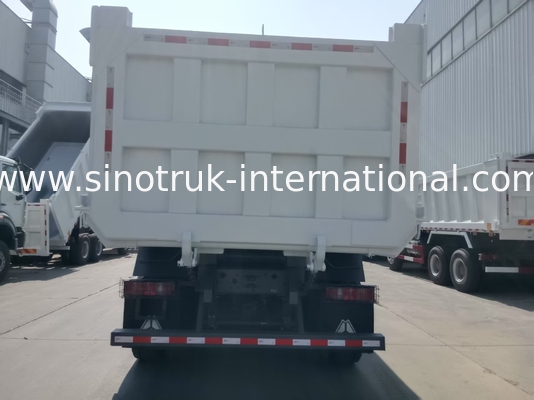

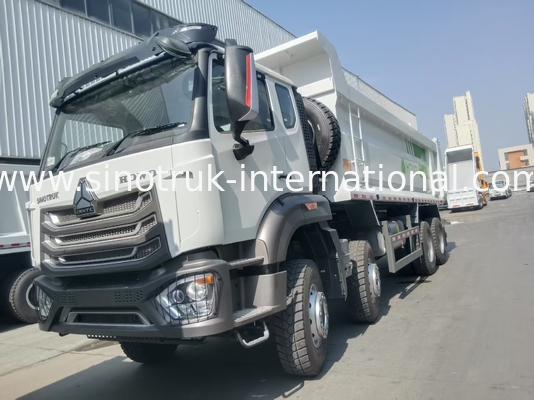

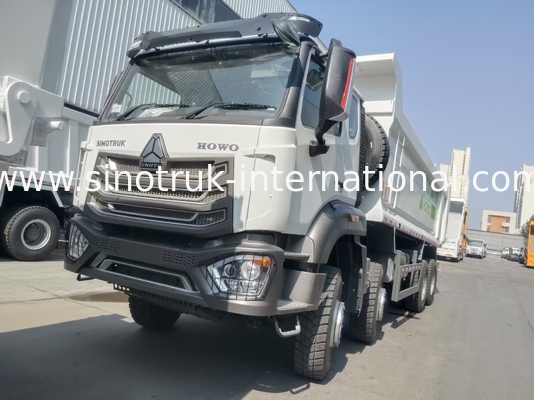

7300*2300*1500mm Cargo Box Heavy Duty Dump Truck For Smooth Cargo Transportation RHD / LHD Driving Type

7300*2300*1500mm Cargo Box Heavy Duty Dump Truck For Smooth Cargo Transportation RHD / LHD Driving Type

商品の詳細:
起源の場所: 中国
ブランド名: SINOTRUK HOHAN
証明: ISO/3C/BV/IFA/SGS
モデル番号: ZZ3317V356JB1R
お支払配送条件:
最小注文数量: 1ユニット
価格: 交渉可能
Packaging Details: Waxing in Bulk ship, Roro ship, Container
受渡し時間: 30 営業日
供給の能力: 3月1000台
連絡先
詳細製品概要
タイヤ: 12.00R20/12R22.5 など ステアリング: ボッシュ
Horsepower: 400hp Traction: Hohan 8x4 Dump Truck
貨物箱: 7300*2300*1500mm 運転タイプ: RHD/LHD
ハイライト:

RHD Heavy Duty Dump Truck

,

LHD Driving Type Dump Truck

,

Smooth Cargo Transportation Dump Truck



Description:

Tipper Truck SINOTRUK HOHAN Front Lifting 30 - 40tons LHD 8X4 for Construction

This type product , with features of reliable structure , high loading capacity which can load 30-40tons,strong power from 266HP to 420HP, reliable performance and wide acceplication.



This model can meet the requirements of severe environment like construction site and mining area.which can fullfiled you of short distance transportation of mining rock and soil as well as engineering construction.







Specifications:




7300*2300*1500mm Cargo Box Heavy Duty Dump Truck For Smooth Cargo Transportation RHD / LHD Driving Type
Model ZZ3317V356JB1R
Drive Type 8×4
Engine
WP12.400E22    400HP( Euro II)
6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine
Displacement : 11.596L
Cabin H77L(with one sleeper, air-conditioner and new-style seat)
Transmission HW19710(10 forwards & 2 reverses)
Front Axle 2×VGD95 ( 9.5 Tons)
Driving Axle 2XMCX16ZG, 16Tons
Steering ZF8118 hydraulic steering with power assistance.
Clutch

Single-plate dry coil-spring clutch, diameter 430mm, hydraulically operating with

air assistance

Rim/ Tire 11.00R20,12.00R20,12.00R24 Radial tire
Wheel base 3800+1350(mm)
Overall dimension 8550×2496×3450(mm)
Cargo body 5800×2300×1500(mm),Bottom:8mm, Side:6mm
The curb weight 12100(Kg)
Gross weight 25000 kg
Max. speed 75km/h
Color White, red, green, golden and so on.


Applications:



working for Mining industry, Construction business, docks, to transport soil, sand, stones and so on.



Competitive Advantage:
1. competive price, cost-effective
2. with all kinds of truck model, which can fulfil your requirements
3. all kinds of cargo body structure can be designed and produced according to your request,make it have light curb weight , high rigidity , high loading capacity
4. using the high strength steel, make it has a long service life
5. The optimized hydraulic control system helps to avoid wrong operation, it has higher safety and running efficiency.
6. excellant apperance of cabin, safety, reliable
7. quick and efficient spare parts supply bring you more convenient
8. you can choose cargo body with Front lifting type or Middle lifting type which you prefered
9. The hydraulic sytem using HYVA brand or Domestic famouse brand
10. low fuel consumption
11. strong enough engine
12. fast delivery time, we can arange production according to your needs exactly and quickly
13. professional import and export dealing precedure, make customs clearance more high efficiency
